Bicolor 3v 200mcd Axial High Brightness SMD LED 630nm Red Blue LED

Product Categories
Shen Zhen Xin Ming Hong Electronic Co., Limited
Contact Now

Bicolor 3v 200mcd Axial High Brightness SMD LED 630nm Red Blue LED

  • 1
  • 2

Place of Origin : Guangdong, China

Brand Name : XINMINGHONG

Certification : RoHS

Packaging Details : 1000pcs per bag

Price : $0.042/pieces 1-9999 pieces

Input Voltage(V) : DC3V

Warranty(Year) : 5-Year

Type : SMD LED

Lighting solutions service : data sheet

Lifespan (hours) : 30000

Working Time (hours) : 30000

Chip Material : AlGaInP

Emitting Color : Red and blue

Luminous Intensity : 80-200

Luminous Flux(lm) : 0.5-1

Optical Attenuation(%) : 0.01

Power : 0.06W

Power Dissipation : 90

Viewing Angle(°) : 120

Color Rendering Index(Ra) : 80

Color Temperature : 620-630

Operating Temperature(℃) : -40 - 80

Storage Temperature(℃) : -40 - 80

Product name : axial led

Color : Bi-color Red

Contact Now

Bicolor 3v 200mcd Axial High Brightness SMD LED 630nm Red Blue LED

Product Description of Axial SMD LED

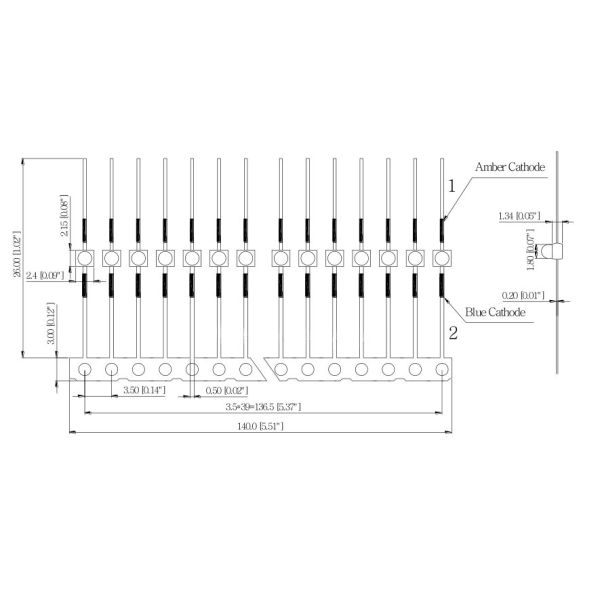

Outline dimension of Axial SMD LED:

Bicolor 3v 200mcd Axial High Brightness SMD LED 630nm Red Blue LED

Feature of Axial SMD LED:

Axial SMD LED

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Wide view angle

High reliablity

Energy-saving, enviormental protection

Long lifespan

Package:1000pcs/bag

ROHS Compliant

Application of Axial SMD LED:

Ideal for backlight and indicator

Various colors and lens types available

Absolute Maximum rating of Axial SMD LED:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 90 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of Axial SMD LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 620 --- 630 nm
464 --- 474
Forward voltage If=20mA Vf 1.8 2.0 2.4 v
2.8 3.2 3.7
Luminous intensity If=20mA Iv 100 200 mcd
100 200
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 5 mA
