Red DC2.5v Green 60mcd Axial LED long lifespan 50000h LED diode

Shen Zhen Xin Ming Hong Electronic Co., Limited
Contact Now

Red DC2.5v Green 60mcd Axial LED long lifespan 50000h LED diode

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : XMH

Certification : RoHS

Packaging Details : 1000pcs per bag

Price : To be negotiated

MOQ : 1000pcs

Supply Ability : 1000pcs per day

Input Voltage(V) : DC 2.5V

Warranty(Year) : 5-Year

Type : SMD LED

Lighting solutions service : Data sheet

Lifespan (hours) : 50000

Working Time (hours) : 50000

Chip Material : AlGaInP

Emitting Color : YELLOW GREEN

Luminous Intensity : 30-60

Luminous Flux(lm) : 0.2-1

Optical Attenuation(%) : 0.01

Power : 0.06W

Power Dissipation : 0.01

Viewing Angle(°) : 120

Color Rendering Index(Ra) : 80

Color Temperature : 565-570

Operating Temperature(℃) : -40 - 80

Storage Temperature(℃) : -40 - 80

Golden wire : 99.99% Pure Golden Wire

Material : Copper+gold Wire

Color : Green Color

Package : Anti-static Bag Packaging

Contact Now

Red DC2.5v Green 60mcd Axial LED long lifespan 50000h LED diode

Product Description of Axial SMD LED

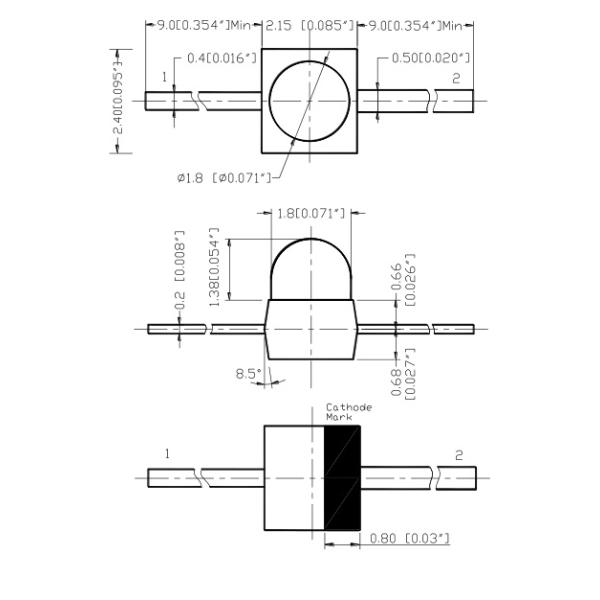

Outline dimension of Axial SMD LED:

Red DC2.5v Green 60mcd Axial LED long lifespan 50000h LED diode

Feature of Axial SMD LED:

1.8mm axial leadframe SMD LED

Avaliable color:red yellow blue green RGB etc.

Low power consumption

Wide view angle

Long lifespan

Package:1000pcs/reel

ROHS Compliant

Application of Axial SMD LED:

Ideal for backlight and indicator

Various colors and lens types available

Absolute Maximum rating of Axial SMD LED:(Ta=25°C)

Parameter Symbol Value Unit
Forward current If 30 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 90 mW
Operationg temperature Top -40∼+85 °C
ESD(Human-body mode -- 2 KV
Storage temperature Tstg -40∼+85 °C
Peak pulsing current(1/8 duty f=1kHz lfP 125 mA

Electrical characteristics of Axial SMD LED:(Ta=25°C)

Parameter Test condition Symbol Value Unit
Min Typ Max
Dominant wavelength If=20mA λd 565 570 575 nm
Forward voltage If=20mA Vf 1.8 2.0 2.5 v
Luminous intensity If=20mA Iv 30 60 mcd
Viewing angle at 50% lv If=10mA 2θ1/2 120 Deg
Resverse current Vr=5v Ir 10 mA

Related Products

Hot sales

Certifications

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Company Information

Established Shenzhen XINMINGHONG CO.,LTD in 2004 with 100000 grand purification constant termperature and humidity anti-static production workshop,mainly produce various LED,including PCB ,bracket and TOP type directory.

LED for renowned customers around the word. As a team with 20 yeas of management experience in domestic packing enterprises,it witnessed the rapid development of LED industry, accumulated rich experience in LED R&D and packaging technology, formed a scientific management sytem.Our monthly production is over 5000KK pcs.

Our products are the result of experienced manufacture process, rigorous quality control and carefully selected raw material supplies. . The massive production due to the high quality demand and competitive price in LED industry.

MH provides excellent sales service and strong technical supports to our customers.

Our Advantages

High capacity

12000000pcs per day

High standard

Multiples sets of testing equipment and passed SGS authoristaion

OEM &ODM

Can be designed and produced according to customer requirement

Professional service team

Team with 20 years of management and production experience.

FAQ

Why choose us?

1,Your inquiry for our products or prices will be replied in 24 hours

2,Protection of your sales area,ideas of design and all your private in formation.

3,We guarantee both quality and service regardless of your order qty.

4,Advanced equipment and goods materials:ASM machine good chip and expoxy resin.

5,If there is LED failure, how can you support?

A:Clients provide us with pictures of the failed products or the samples rejected, our engineers of after sale team will analyze the failure and find out the failure reasons. If the failure was caused by Xinminghong, we will compensate with qualified replacement as fast as we could!

6,Would you offer free samples?

A:Yes, We would offer free samples

7,What about the lead time?

A:It depends on the order quantity. Generally the lead time should be 5-7 working days. For samples, the delivery could be as fast as same day.
