Product Description

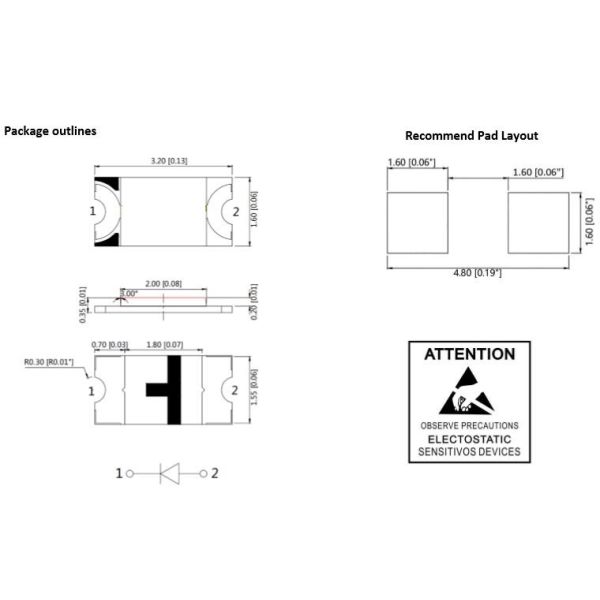

Outline dimension:
Feature:
3.2mmx1.6mm blue SMD LED 0.35mm thickness
Avaliable color:red yellow blue green RGB etc.
Low power consumption
Wide view angle
Long lifespan
Package:3000pcs/reel
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 90 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | 470 | --- | 475 | nm |
| Forward voltage | If=20mA | Vf | 3.0 | 3.2 | 3.4 | v |
| Luminous intensity | If=20mA | Iv | 150 | --- | 200 | mcd |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | 140 | | Deg |
| Resverse current | Vr=5v | Ir | | | 10 | mA |
Related Products
Hot sales
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
