Product Description

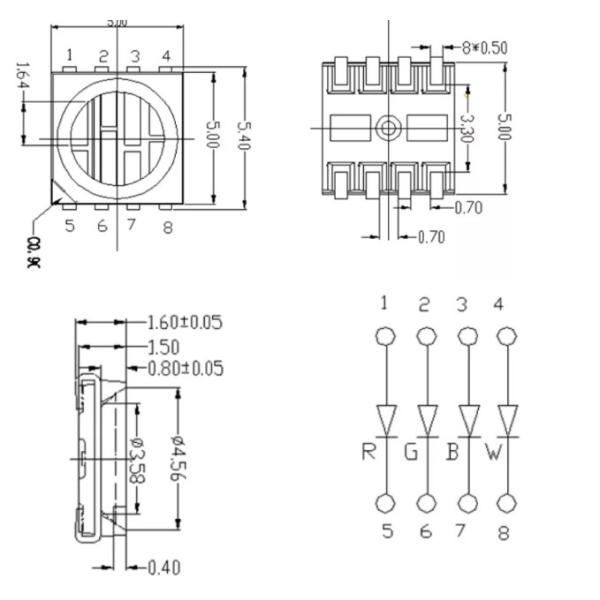

Outline dimension:
Feature:
Dominant Wavelength/CCT Red (619 - 624nm) Green (520 - 535nm) Blue (460 - 475nm) White (3000K/4000K/5000K/5700K)
High Luminous Intensity (mcd)
Moisture Sensitivity Level: 5a
Package:2000pcs/reel
ROHS Compliant
Application:
Architecture Lighting
Decorative Lighting
Amusement
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 30 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 60 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit |
| | Min | Typ | Max |
| Dominant wavelength | If=20mA | λd | red | 620 | | 625 | nm k |
| green | 515 | | 520 |
| blue | 465 | | 470 |
| white | 6000 | | 6500 |
| Forward voltage | If=20mA | Vf | red | 2.0 | 2.2 | | v |
| green | 3.0 | 3.2 | |
| | 3.0 | 3.2 | |
| blue | 3.0 | 3.2 | |
| Luminous intensity | If=20mA | Iv | red | 2 | | 4 | lm |
| green | 4 | | 6 |
| white | 7 | | 8 |
| blue | 3 | | 4 |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | | | 120 | | Deg |
| Resverse current | Vr=5v | Ir | | | | 10 | mA |
